GBS - ABG - Wasit Flour Milling

Al-Burhan Group / GBS (Golfetto S.P.A) AND Ministry of Trade “The State Company for Grain Processing Contracts for supply of machineries and equipment for Flour Mill.

Supply of  five (5) complete flour mills with capacity (200 Ton/day) machineries and equipment for intake, cleaning, tempering, milling steel structure, steel silos, mixing & packing sections with accessories & spare parts for flour mills in Kirkuk, Missan, Diwanya , Nassiriya and Tikrit.

Contract No:  SCOGP / 7 / 24 / 2000

1- Contracting party: Golfetto S. P.A.
2- Goods: Machineries and Equipments for Flour Mills.
5- Quantity: (5) complete flour mills.
6- Exporting country: Italy
7- Entry Point: Trebil

  1. Price: CIF Baghdad via Trebil or Al Walid Entry Point.
  2. Specifications: as Per quotation .
  3. Origin: Italy.
  4. Place of shipment: Italy.
  5. Means of transportation: by vessel via Aqaba then by truck to Baghdad. through Trebil Entry point.




Specification of Flour Mill

  1. One line mill of (150) ton/24H with metal constriction up to date  including sandwich panel for roofs and walls (temperature, 0-50 degree centrgrade)
  2. Raw wheat: AUS, American, Canadian and local wheat: local wheat has impurities from 2- 12%.
  3. Intake capacity 30/11.
  4. Metal silos with capacity 600T.
  5. Metal tempering silos with capacity 300T.
  6. Tempering will be in two steps with necessity water tanks.
  7. Flour silos 250T.
  8. Bran silos 50T.
  9. Screening bin 10T.

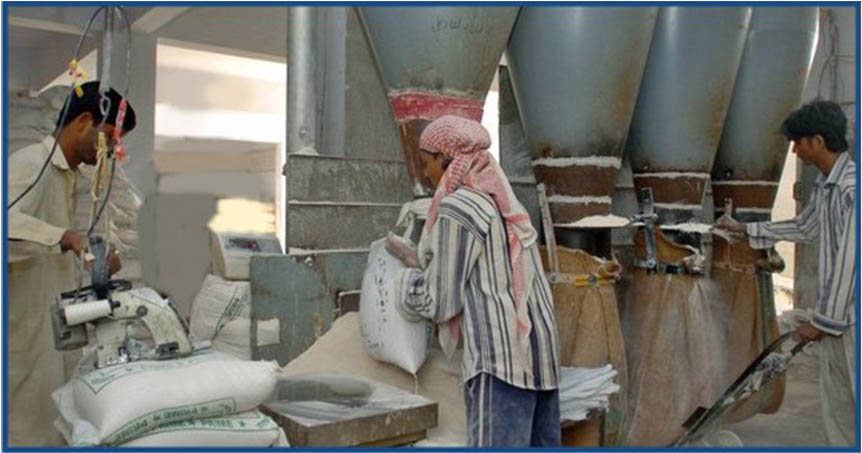

  10. Flour packing capacity 15T/H
  11. Flour extraction:   72% White flour  28  %  Bran   or  30 %  White Flour,   55 %   Dark   Flour,  15 %   Bran
  12. Weigh bridge with 80T.
  13.  Capacity 18M length.
  14. IP 54 electric protection.
  15. Enough area for the mill and offices is available.
  16. Lighting inside the sites.
  17. Complete buildings of setting fire with necessary pumps and fire plugs and flexible tubes.
    - Electronic balance (mettle or Sartorius)
    - Wheat moisture tester ( motormen)
    - Flour rapid moisture tester ( bartender)
    - Sifter (Buhler)
  18. Grinding and fluting machine.
  19. Suitable work shop tools.
  20. Transformer and generating set enough to run the mill.
  21. Supervision of erecting by YR. experts with local training.
  22. Training for (4) Iraqi millers and technicians (2) month for each mill in YR. factories.
  23. Spare parts enough for three years.
  24. Catalogues and drawings are required.



GBS - ABG - Wasit Flour Milling

Chain Conveyor of wheat between silos and Mill

Item

Specification

Qty.

1

Chain conveyor of wheat between silos and mill wit accessories and spare parts

2 Units


Contract for the supply of chain conveyor of wheat between silos and mill with accessories and spare parts link Silos and Mill Taji AND Dora Flour Mills in Baghdad.

Ministry of trade the state company for grain processing Braibanti Golfetto



  1. Chain conveyor of wheat between silos and mill with accessories and spare parts.
  2. Specifications and prices: as attached in the annex all the prices are CIF Baghdad via Trebil.
  3. Origin: Italy.
  4. Entry point: Trebil.
  5. Means of transportation: by truck via Aqaba.

GBS - ABG - Wasit Flour Milling


Supply of rolls for flour mill

Contract No:  1/3/6/7
First party (buyer): Ministry of trade AND The State Company for Grain Processing
Second party (seller): Braibanti Golfetto /GBS/ALBurhan Group

     1-Commodity: rolls for flour mills
2-Specifications and prices: as attached in the annex all the prices are CIF Baghdad
3-Origin: Italy.
4-Place of shipment: Italy.
5-Entry point: Trebil.
6-Means of transportation: by truck via Aqaba.

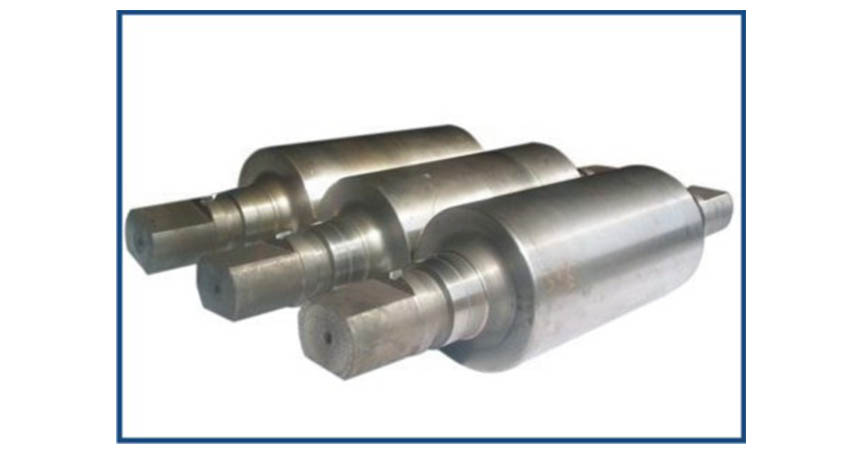

Rolls

Item

Dia. MM

Length MM

Shafts MM

Size DiaMM

Qty

1

250

1500

450

100

20

2

250

1250

375

95

60

3

250

630

315

85

60

4

190

500

215

60

430

5

190

400

215

60

112

6

10 Inch

60 Inch

20Inch

110

20

7

10Inch

40Inch

20Inch

110

20


Total
722


GBS - ABG - Wasit Flour Milling

Supply of tempering units and spare parts

Contract No: SCOGP / 7 / 24 / 200

First party (buyer): Ministry of trade

Second party (seller): Golfetto S.P.A/GBS/AlBurhan Group





Tempering system type hygros tec 3 with octagonal intensive screw conveyor type 30/180 with 11KW drive motor with air compressor
(min pressure 6 Bar) and water pump 1.5Bar



77




Tempering system type hygros tec 3 with octagonal intensive screw conveyor type 40/200 with 15KW drive motor with air compressor
(min pressure 6 Bar) and water pump 1.5Bar



38

Spare parts for above machines (details per appendix No.2)




Technical specifications

 For Tempering System type hydro’s (model tec 3)

The system is made of

A) All octagonal screw conveyor type B.I equipped with a rotor and peddles to provide a perfect distribution of water over a complete mass of product complete with electrical motor drive.

B) A capacity probe for moisture control complete with capacity sensor type SU301 having the following feature:

  • capacity up to 30T/h of product, with loading bin sensing
  • moisture measuring range : 5-20%  0,2% +/- tolerance
  • measuring channel electro-pneumatic auto cleaning system
  • product screw discharge from the measuring unit
  • periodic auto-regulation of the internal sensors
  • data displayed:
    - moisture
    - temperature
    - hourly capacity
    - product total
    - specific weight indicative value
  • digit display, with possibility to display the previous data
  • auto-temporized internal lighting
  • drawer with capacity sensor plate and extractable measuring channel for cleaning and quick inspection
  • stainless steel construction 24VAC feeding

The sensor can set out instantly the electrolytic weight temperatures, electric constancy, conductivity and dielectric loss of the product at the inlet and to process all these data setting out the quantity of water present in the product.

The built in capacity sensor sets out instantly the capacity of the product coming to the damper.

After having set out the moisture percentage of the product at the intel, a special electronic computerized device sets out the quantity of water to be added to the product in order to obtain the final moisture required and it adds it directly by operating on the hydraulic section.

C) Water panel, including:

- filter with stainless steel cartridge with 59U filtering
- solenoid valve
- pressure reducing valve
- pressure gauge
- flow meter
- electronic control panel type DA 301 for water control having the following characteristics:

- On line available data
- Final moisture set
- Hourly capacity
- Product total
- Dosed water totalities
- Specific weight value indicated
- Temperature
- Dedicated serial line for the connection to the SU 301 probe
- Possibility to select up to 10 formulas
- Water dosing capacity from 30 I/H to 2500 I/H
- T/H M3/H display
- Multiple display and keyboard for displays and settings
- Code system for keyboard inhibition
- 24V feeding


Technical notes

Water:
The system requires hydria feeding with 1.5Bar operating pressure. This means that the water tank will have to be installed 15 MTS above the tempering units.

The TDS value of the water cannot exceed 1,000 PPM parts per million

Compress air:
The system requires an operating pressure between 4-7Bars (normal 6Bars)

Consumption:
50l/Minter per 0.25sec.


Spare parts for tempering units





1

115 water filter with stainless steel cartridge with 50 filtering

2

115 solenoid valve

3

115 modulating valve

4

115 pressure gauge

5

5 electronic components for capacity probe for moisture control type SU 301 complete with capacity sensor

6

5 electric panel type DA 301 for water control
